Accessories

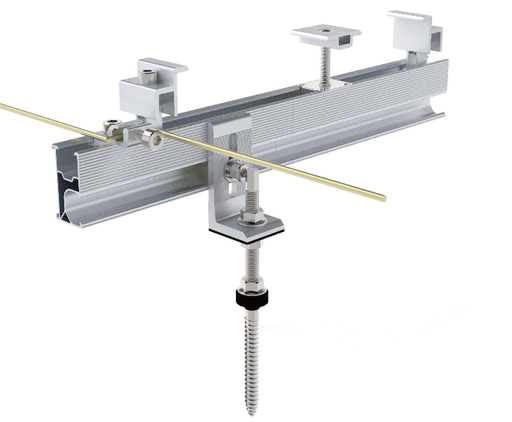

Roof Mounting Structure
Price per Panel

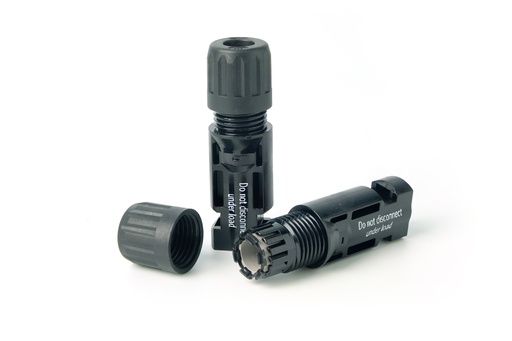

MC4 Connectors, 30A, 1000VDC

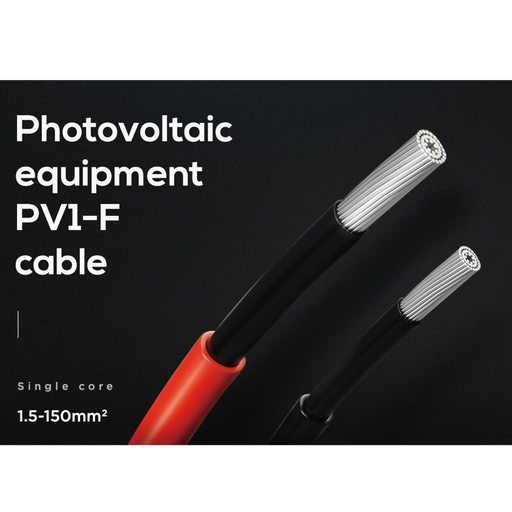

PV Cable per Meter, 6mm^2

PV Cable, 100M, 6mm^2

[SIMGEN] Standard Interconnection Materials & Equipment (General)
Equipment & Materials for Solar System Installation

Service Description:
This package includes all necessary components and interconnection materials for a proper and fully operational solar energy system.

Included Equipment & Materials
1. AC-Interconnection Box – Provides a safe and compliant connection between the solar system and the electrical grid.
2. Battery Combiner & DC Switch – Combines multiple battery units into a single hub and connects them to the inverter.
3. PV Combiner/SPD (Surge Protection Device) – Protects the system from electrical surges.
4. Interconnection Materials – Includes necessary connectors, breakers, fuses, and accessories.
5. Grounding Pin & Accessories – Ensures proper earthing for system safety.
6 Cable Ducts – Protective conduits to organize and safeguard electrical wiring.
7. AC & DC Cables – High-quality electrical cabling for power transmission (up to 14 meters 5*6mm2 AC Interconnection cable).

Cable Limitation & Additional Charges
1. Cable Distance Beyond 14 Meters – Any additional cabling beyond 14 meters will be charged separately and discussed in advance.
2. Additional Equipment Requirements – Any extra components beyond the standard package will be billed separately with prior client approval.

𝗻𝗟𝗶𝗴𝗵𝘁𝗣𝗼𝘄𝗲𝗿 ⅔-𝗦𝘁𝗿𝗶𝗻𝗴 / ⅔-𝗠𝗣𝗣𝗧 𝗗𝗖 𝗣𝗩 𝗖𝗼𝗺𝗯𝗶𝗻𝗲𝗿 𝗕𝗼𝘅
1000VDC, 32A per string, 4P MCCBs with auxiliary MCBs, GPV fuses, and integrated Type 2 SPDs. Prewired, DIN-rail mounted, IP-rated enclosure. Designed for safe and efficient string-level DC protection and inverter integration.

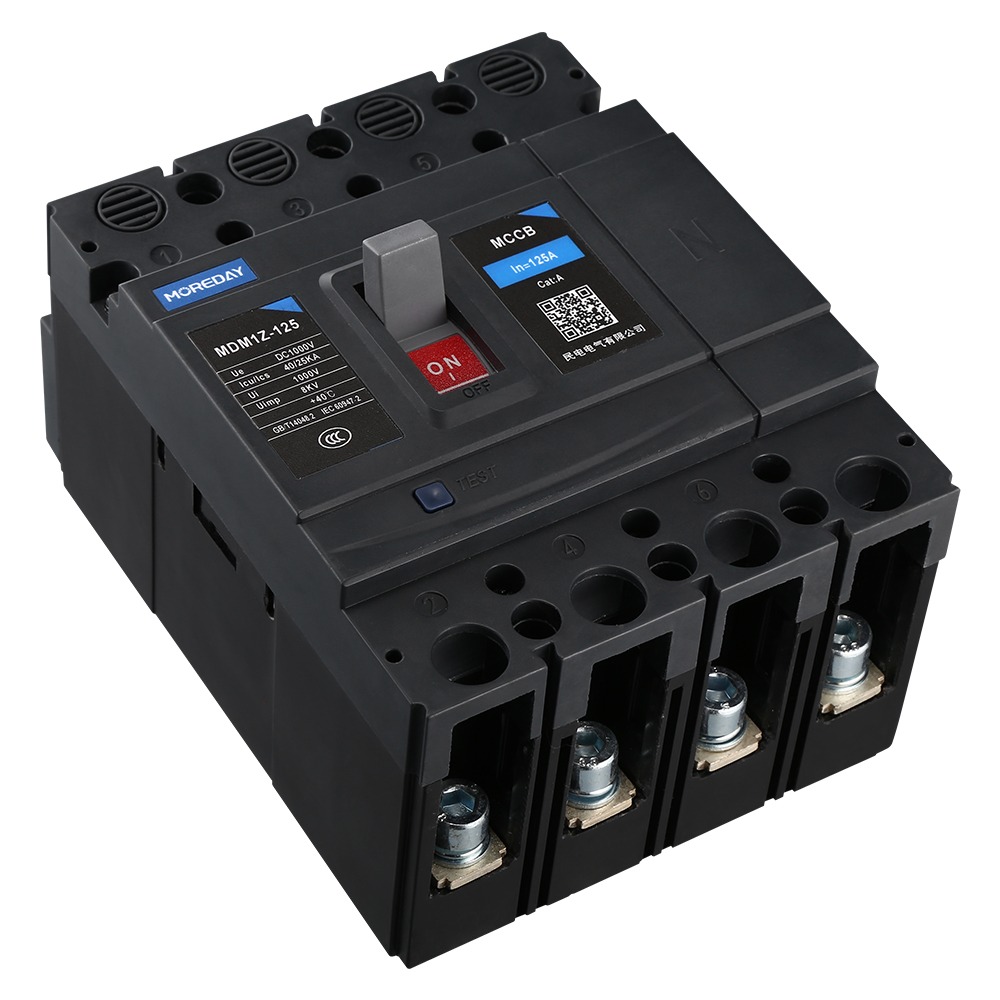

Battery DC Breaker and Combiner

The Battery DC-Breaker and Combiner are essential components for managing and protecting your battery system. The DC-Breaker is a manual switch that allows you to safely disconnect the batteries from the inverter for maintenance, safety checks, or any other necessary reason. The Combiner integrates multiple battery strings into a single output, simplifying your system’s setup and improving overall efficiency. Together, these components ensure that your battery storage system operates effectively, providing reliable power management and safety.

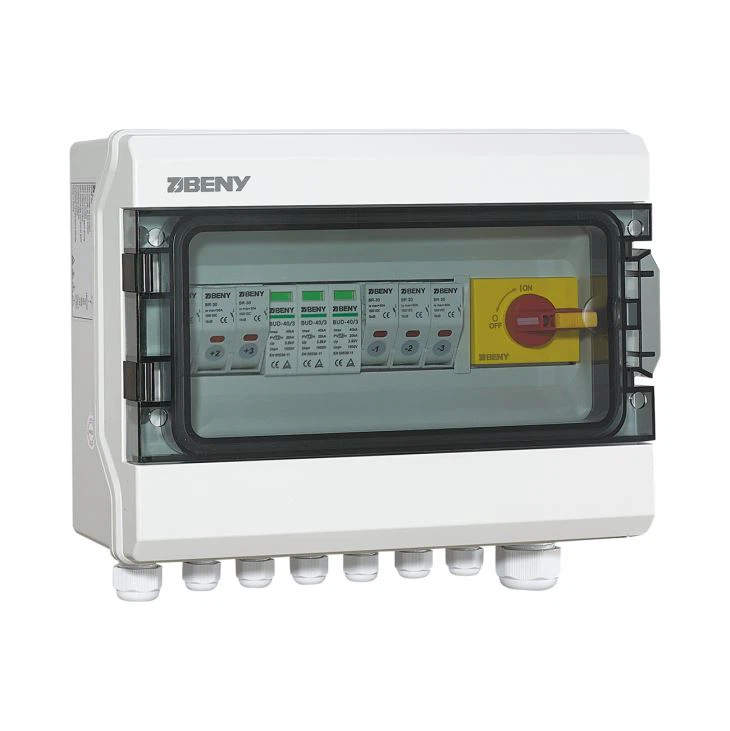

AC-BOX: Efficient Inverter Bypass and Power Management

The AC-BOX is an essential power management solution designed to serve as the key interconnection point between your solar system, grid power, and house load.

Featuring a Transfer Switch, the AC-BOX allows you to quickly transfer the load from the inverter to the grid during maintenance or when the inverter requires downtime. It provides a straightforward and reliable way to manage your power sources. The AC-BOX offers a safe and efficient means to ensure your system operates smoothly, making it ideal for homes and businesses that need flexible energy management.

RED WOLF Bar Bus 4 x 3/8" Power Distribution Block, 3 x #8(M4) Screws Terminals Max 48V 150A Power Distribution Block Battery Buss Bar with Cover for Marine Automotive Solar Wiring.

Power bus-bar is able to reach 150A (MAX) when input/output voltage between 12V-48V DC, NOTE: MAX Continuous Current will DECREASE with Temperature & Humidity Affection

𝗗𝗖 𝗕𝗮𝘁𝘁𝗲𝗿𝘆 𝗗𝗶𝘀𝗰𝗼𝗻𝗻𝗲𝗰𝘁 𝗦𝘄𝗶𝘁𝗰𝗵 – 𝟮𝟱𝟬𝗔 & 𝗣𝗼𝘄𝗲𝗿 𝗗𝗶𝘀𝘁𝗿𝗶𝗯𝘂𝘁𝗶𝗼𝗻 𝗕𝗹𝗼𝗰𝗸

𝗗𝗖 𝗕𝗮𝘁𝘁𝗲𝗿𝘆 𝗗𝗶𝘀𝗰𝗼𝗻𝗻𝗲𝗰𝘁 𝗖𝗶𝗿𝗰𝘂𝗶𝘁 𝗕𝗿𝗲𝗮𝗸𝗲𝗿 – BENY BDH-250 (250A, 1200V DC)
This high-performance DC circuit breaker is designed for battery isolation in solar energy and storage systems. With a rated current of 250A and voltage capacity of up to 1200V DC, it provides safe and efficient disconnection of battery banks from inverters or loads during maintenance, emergency shutdowns, or fault conditions.

Ideal for use in solar PV battery storage systems, EV charging infrastructure, or any high-voltage DC circuit requiring reliable battery isolation.

𝗥𝗘𝗗 𝗪𝗢𝗟𝗙 𝗕𝗮𝗿 𝗕𝘂𝘀 𝟰 𝘅 𝟯/𝟴" 𝗣𝗼𝘄𝗲𝗿 𝗗𝗶𝘀𝘁𝗿𝗶𝗯𝘂𝘁𝗶𝗼𝗻 𝗕𝗹𝗼𝗰𝗸, 3 x #8(M4) Screws Terminals Max 48V 150A Power Distribution Block Battery Buss Bar with Cover for Marine Automotive Solar Wiring.

Power bus-bar is able to reach 150A (MAX) when input/output voltage between 12V-48V DC, NOTE: MAX Continuous Current will DECREASE with Temperature & Humidity Affection
